12–48 V power tools and cordless equipment

When heavy duty lithium battery packs and brushless DC motors were first combined, no one would have guessed the impact they would have on cordless power tools let alone drones, vacuum cleaners and gardening equipment. Yet today cordless devices continue to replacing a whole range of mains-powered consumer and industrial equipment. While 12-24 V systems are still common, more and more manufacturers are switching to more powerful 36 V or 48 V systems. Of course with more power comes the need for greater safety and Nexperia’s portfolio helps provide that safety without sacrificing efficiency.

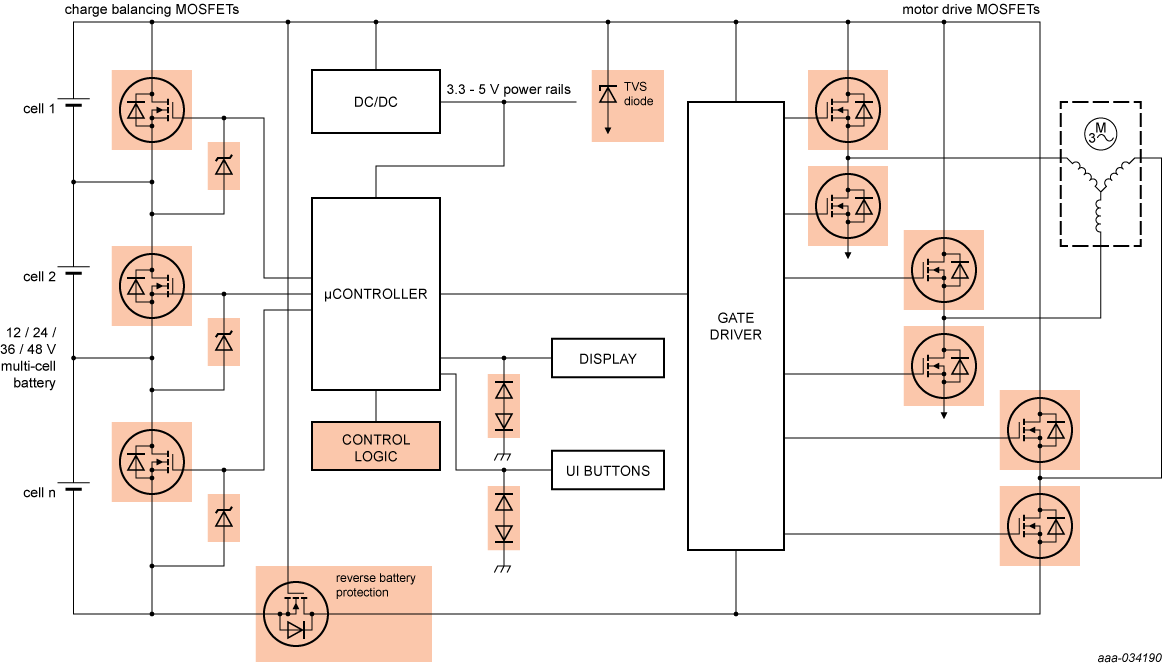

Block diagram

Highlighted components are Nexperia focus products

設計考慮因素

  • 開始采用PWM驅動無刷直流電機控制
  • 電機驅動MOSFET必須以低RDSon和良好的熱阻抗來滿足峰值高電流需求
  • 如果過載情況會降低電池和柵極電壓,則可能需要具有強線性模式性能的MOSFET來提供反向電池保護
  • MOSFET可能需要滿足UL2595等的具體間距要求
  • 為小尺寸優化的電荷平衡MOSFET,通常裝在可移動電池組中——每個電池一個
