雙極性晶體管

二極管

ESD保護、TVS、濾波和信號調節ESD保護

MOSFET

氮化鎵場效應晶體管(GaN FET)

絕緣柵雙極晶體管(IGBTs)

模擬和邏輯IC

汽車應用認證產品(AEC-Q100/Q101)

用于電池隔離的ASFET

增強的SOA、穩健性和最大電流

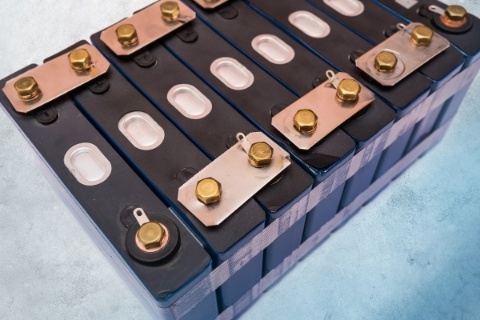

如今大多數手持和電池供電的工具和設備都依賴于多節鋰離子電池組。鋰離子電池具有能量密度高的優點。但是在故障情況下，這可能會成為問題，因為它有可能導致大量不受控制的能量釋放，從而導致負載過熱和潛在的電路火災。要在安全隔離電池并關閉系統前以可控的方式處理大量放電，需要非常穩健且具有高熱效的MOSFET。Nexperia最穩健的LFPAK封裝器件的理想應用。

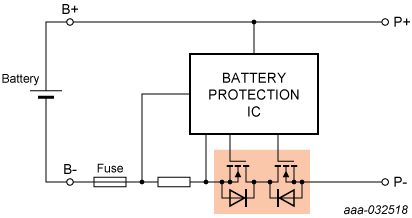

用于電池隔離的ASFET專為多節電池供電設備而設計：

  • 在故障情況下，由于在故障引起深度放電時，大電流下的電路電感會產生電壓，因此電池隔離MOSFET通常會進入線性模式
  • 增強的SOA MOSFET繼續安全可控地運行，直到關閉為止，電池與負載電路完全隔離
  • 正常工作時，需要低導通電阻才能實現低傳導損耗，但需要優化參數以實現安全的電池隔離
  • 穩健的電池隔離MOSFET可用作設備批準的主要保護
  • 可能需要低Vt，因為電池保護IC可能只有2-3 V柵極驅動

參數搜索

ASFETs for battery systems and eFuse
數據加載中，請稍候...
參數搜索不可用。

產品

型號 描述 狀態 快速訪問
PSMN0R9-30ULD N-channel 30 V, 0.87 mOhm, 300 A level Application Specific MOSFET in SOT1023A enhanced package for UL2595 Production
PSMN1R0-100ASF NextPower 100 V, 0.99 mOhm, N-channel MOSFET in CCPAK1212 package Production
PSMN1R0-100CSF NextPower 100 V, 1.04 mOhm, N-channel MOSFET in CCPAK1212i package Production

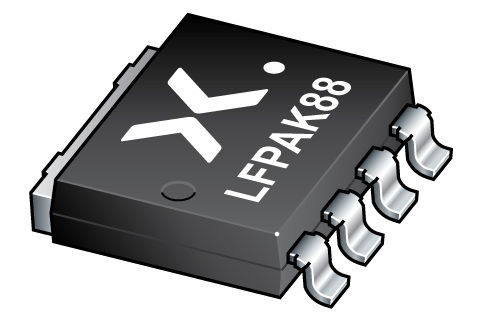

PSMN1R0-40SSH N-channel 40 V, 1 mΩ, 325 Amps continuous, standard level MOSFET in LFPAK88 using NextPowerS3 Technology Production
PSMN1R0-40ULD N-channel 40 V, 1.1 mOhm, 280 A logic level Application Specific MOSFET in SOT1023A enhanced package for UL2595 Production
PSMN1R0-40YLD N-channel 40 V, 1.1 mΩ, 280 A logic level MOSFET in LFPAK56 using NextPower-S3 Schottky-Plus technology Production
PSMN1R1-80ASF NextPower 80 V, 1.11 mOhm, N-channel MOSFET in CCPAK1212 package Production
PSMN1R1-80CSF NextPower 80 V, 1.16 mOhm, N-channel MOSFET in CCPAK1212i package Production
PSMN1R2-55SLH N-channel 55 V, 1.03 mOhm, 330 A logic level Application Specific MOSFET in LFPAK88 Production
PSMN1R3-100ASF NextPower 100 V, 1.3 mOhm, N-channel MOSFET in CCPAK1212 package Production
PSMN1R4-100CSF NextPower 100 V, 1.35 mOhm, N-channel MOSFET in CCPAK1212i package Production

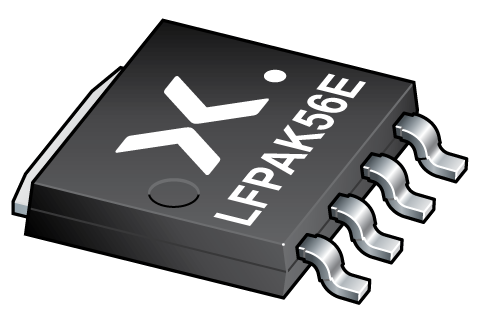

PSMN1R5-50YLH N-channel 50 V, 1.7 mOhm, 200 A continuous, logic level Application Specific MOSFET in LFPAK56E Production
PSMN2R0-55YLH N-channel 55 V, 2.1 mOhm, 200 A continuous, logic level Application Specific MOSFET in LFPAK56E Production
PSMN3R9-100YSF NextPower 100 V, 4.3 mOhm, 120 A, N-channel MOSFET in LFPAK56E package Production
PSMNR51-25YLH N-channel 25 V, 0.57 mΩ, 380 A logic level MOSFET in LFPAK56E using NextPowerS3 technology Production
PSMNR58-30YLH N-channel 30 V, 0.67 mΩ, 380 A logic level MOSFET in LFPAK56E using NextPowerS3 technology Production
PSMNR60-25YLH N-channel 25 V, 0.7 mΩ, 300 A logic level MOSFET in LFPAK56 using NextPowerS3 technology Production
PSMNR70-30YLH N-channel 30 V, 0.82 mΩ, 300 A logic level MOSFET in LFPAK56 using NextPowerS3 technology Production
PSMNR70-40YSN N-channel 40 V, 0.81 mOhm, ASFET for Battery System in LFPAK56E Production
PSMNR90-40YLH N-channel 40 V, 0.94 mΩ, 300 A logic level MOSFET in LFPAK56E using NextPower-S3 Schottky-Plus technology Production
PSMNR90-40YSN N-channel 40 V, 0.97 mOhm, ASFET for Battery System in LFPAK56E Production
PSMNR90-50SLH N-channel 50 V, 0.90 mOhm, 410 A logic level Application Specific MOSFET in LFPAK88 Production
PSMNR90-80ASF NextPower 80 V, 0.85 mOhm, N-channel MOSFET in CCPAK1212 package Production
PSMNR90-80CSF NextPower 80 V, 0.9 mOhm, N-channel MOSFET in CCPAK1212i package Production
Visit our documentation center for all documentation

Application note (3)
文件名稱 標題 類型 日期

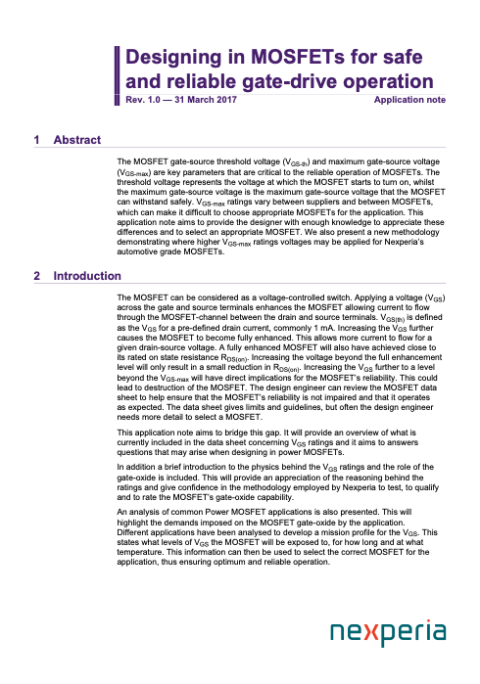

AN90001.pdf Designing in MOSFETs for safe and reliable gate-drive operation Application note 2024-10-28
AN50006.pdf Power MOSFETs in linear mode Application note 2022-04-12

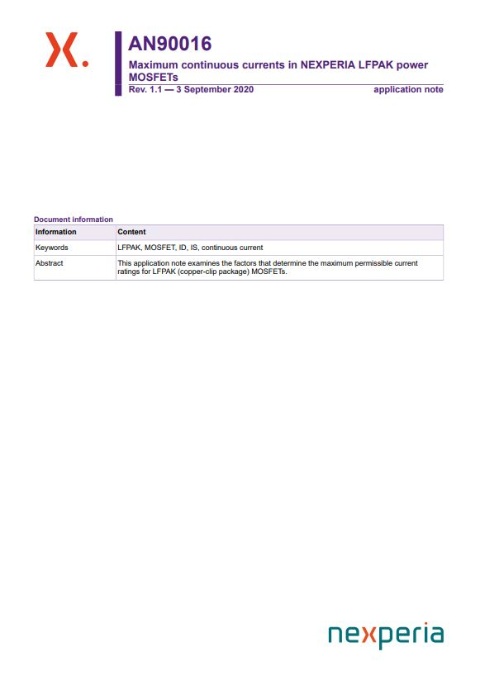

AN90016.pdf Maximum continuous currents in NEXPERIA LFPAK power MOSFETs Application note 2020-09-03

Leaflet (2)
文件名稱 標題 類型 日期
nexperia_document_leaflet_LFPAK88_2022_CHN.pdf LFPAK88 將功率密度提升到新高度 Leaflet 2022-03-10
nexperia_document_leaflet_LFPAK88_2022.pdf LFPAK88 - Driving power-density to the next level Leaflet 2022-03-09

Selection guide (1)
文件名稱 標題 類型 日期
Nexperia_Selection_guide_2023.pdf Nexperia Selection Guide 2023 Selection guide 2023-05-10
