NEVB-NMUX1309模擬開關評估板

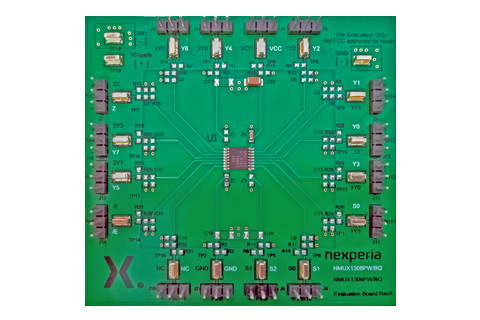

NMUX1309 EVB（評估板）是專為Nexperia的CMOS、雙向、雙路4:1模擬多路復用器設計的PCB。該評估板接受PQ和BQ兩種封裝形式，適用于器件的兩種型號。能夠通過測試點和連接器，輕松訪問電源和信號引腳，實現快速且簡便的設置。
主要特性與優勢
• 工作范圍廣：1.5 V至5.5 V
• 控制信號引腳在較高VCC下可保持1.8 V邏輯電平兼容性
• 模擬信號引腳上采用軌至軌運行
• 斷電保護：確保從I/O引腳到VCC之間不存在ESD路徑
• 注流控制：耦合不超過1 mV/mA
• 控制信號引腳上采用失效保護邏輯
• 引腳兼容行業標準74HC4051/74HC4052和74HC4851/74HC4852模擬開關產品
• 額定溫度范圍為-40℃至+85℃和-40℃至+125℃

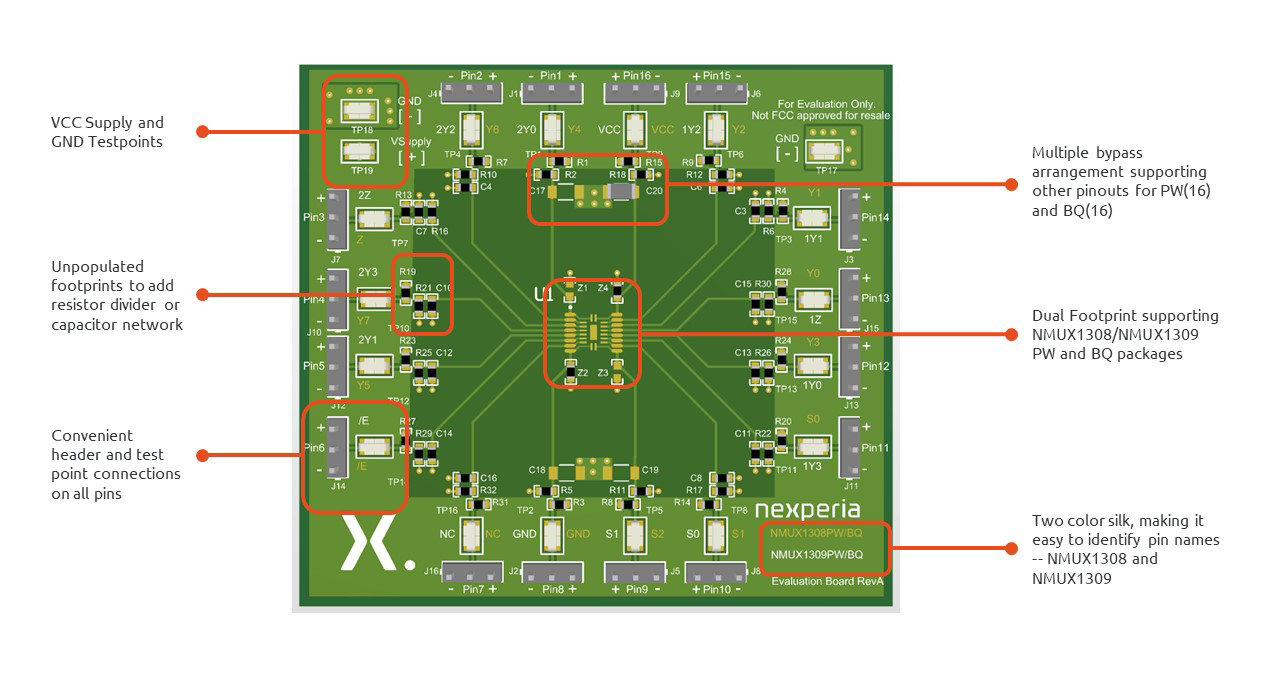

• VCC、GND、Yn(1Yn、2Yn)、Z(nZ)和Sn引腳上具備測試點
• 適用于定制分壓器電路的無源元件布局
• 可選擇使用將輸入連接至VCC或GND的跳線座
• 評估板支持NMUX TSSOP16或DHVQFN16封裝
板上的產品 (4)
| Type number | Description | Status | Quick access | |
|---|---|---|---|---|
|
NMUX1309BQ | 1.5 V to 5.5 V, dual 4-channel switch analog multiplexer and demultiplexer with injection-current control | Production | |
|
|
NMUX1309BQ-Q100 | 1.5 V to 5.5 V, dual 4-channel switch analog multiplexer and demultiplexer with injection-current control | Production | |
|
NMUX1309PW | 1.5 V to 5.5 V, dual 4-channel switch analog multiplexer and demultiplexer with injection-current control | Production | |
|
|
NMUX1309PW-Q100 | 1.5 V to 5.5 V, dual 4-channel switch analog multiplexer and demultiplexer with injection-current control | Production |
相關板塊 (1)
| Board | Description | Type | Quick links | Shop link | |
|---|---|---|---|---|---|
|
nevb-nmux1308-analog-switch-evaluation-board | NEVB-NMUX1308 Analog Switch Evaluation Board | Evaluation board | 訂單 |
Latest news and blogs
板上的產品 (4)
| Type number | Description | Status | Quick access | |
|---|---|---|---|---|
|
|
NMUX1309BQ | 1.5 V to 5.5 V, dual 4-channel switch analog multiplexer and demultiplexer with injection-current control | Production | |
|
|
NMUX1309BQ-Q100 | 1.5 V to 5.5 V, dual 4-channel switch analog multiplexer and demultiplexer with injection-current control | Production | |
|
|
NMUX1309PW | 1.5 V to 5.5 V, dual 4-channel switch analog multiplexer and demultiplexer with injection-current control | Production | |
|
|
NMUX1309PW-Q100 | 1.5 V to 5.5 V, dual 4-channel switch analog multiplexer and demultiplexer with injection-current control | Production |
相關板塊 (1)
| Board | Description | Type | Quick links | Shop link | |
|---|---|---|---|---|---|
|
|
nevb-nmux1308-analog-switch-evaluation-board | NEVB-NMUX1308 Analog Switch Evaluation Board | Evaluation board | 訂單 |
文檔 (1)
| 文件名稱 | 標題 | 類型 | 日期 |
|---|---|---|---|
| UM90026 | NMUX1308; NMUX1309 evaluation board | User manual | 2024-04-30 |
