主要特性和優勢
- 更小電路板空間、更高性能
- 高集電極電流增益hFE（高IC
- 時）低集電極-發射極飽和電壓VCEsat及相應的電阻RCEsat（最低<30 mΩ）
- SOT89、SOT223、TO-126和DPAK等較大功率、中等功率晶體管的高性價比替代選擇
- 高集電極電流增益IC和ICM
關鍵應用
- LAN和ADSL系統的電源開關/中等功率DC-DC轉換
- 反向器應用，如TFT顯示屏
- 中等功率外設驅動器，如風扇、馬達
- 電池充電器/負載開關
- 適合數碼相機與移動電話的頻閃閃光燈
參數搜索
Low VCEsat (BISS) transistors double
數據加載中，請稍候...參數搜索不可用。
產品
| 型號 | 描述 | 狀態 | 快速訪問 |
|---|---|---|---|
| PBSS2515YPN-Q | 15 V low VCEsat NPN/PNP transistor | Production | |
| PBSS4112PAN | 120 V, 1 A NPN/NPN low VCEsat (BISS) transistor | Production | |
| PBSS4112PAN-Q | 120 V, 1 A NPN/NPN low VCEsat (BISS) transistor | Production | |
| PBSS4112PANP-Q | 120 V, 1 A NPN/PNP low VCEsat (BISS) transistor | Production | |
| PBSS4130PAN | 30 V, 1 A NPN/NPN low VCEsat transistor | Production | |
| PBSS4130PANP | 30 V, 1 A NPN/PNP low VCEsat (BISS) transistor | Production | |
| PBSS4140DPN-Q | 40 V low VCEsat NPN/PNP transistor | Production | |
| PBSS4160DPN | 60 V, 1 A NPN/PNP low VCEsat (BISS) transistor | Production | |
| PBSS4160DS-Q | 60 V, 1 A NPN/NPN low VCEsat transistor | Production | |
| PBSS4160PAN | 60 V, 1 A NPN/NPN low VCEsat (BISS) transistor | Production | |
| PBSS4160PANP-Q | 60 V, 1 A NPN/PNP low VCEsat transistor | Production | |
| PBSS4160PANPS | 60 V, 1 A NPN/NPN low VCEsat (BISS) transistor | Production | |
| PBSS4160PANS | 60 V, 1 A NPN/NPN low VCEsat (BISS) transistor | Production | |
| PBSS4220PANS | 20 V, 2 A NPN/NPN low VCEsat BISS double transistor | Production | |
| PBSS4230PAN | 30 V, 2 A NPN/NPN low VCEsat (BISS) transistor | Production | |
| PBSS4230PANP | 30 V, 2 A NPN/PNP low VCEsat (BISS) transistor | Production | |
| PBSS4240DPN | 40 V low VCEsat NPN/PNP transistor | Production | |
| PBSS4260PAN | 60 V, 2 A NPN/NPN low VCEsat (BISS) transistor | Production | |
| PBSS4260PANP | 60 V, 2 A NPN/PNP low VCEsat (BISS) transistor | Production | |
| PBSS4260PANPS | 60 V, 2 A NPN/PNP low VCEsat (BISS) double transistor | Production | |
| PBSS4260PANS-Q | 60 V, 2 A NPN/NPN low VCEsat double transistor | Production | |
| PBSS4350SPN | 50 V, 2.7 A NPN/PNP low VCEsat (BISS) transistor | EndOfLife | |
| PBSS4350SS | 50 V, 2.7 A NPN/NPN low VCEsat (BISS) transistor | EndOfLife | |
| PBSS5112PAP | 120 V, 1 A PNP/PNP low VCEsat (BISS) transistor | EndOfLife | |
| PBSS5130PAP-Q | 30 V, 1 A PNP/PNP low VCEsat transistor | Production | |
| PBSS5160DS-Q | 60 V, 1 A PNP/PNP low VCEsat transistor | Production | |
| PBSS5160PAP | 60 V, 1 A PNP/PNP low VCEsat (BISS) transistor | Production | |
| PBSS5160PAPS | 60 V, 1 A PNP/PNP low VCEsat (BISS) transistor | Production | |
| PBSS5220PAPS-Q | 20V, 2 A PNP/PNP low VCEsat double transistor | Production | |
| PBSS5230PAP | 30 V, 2 A PNP/PNP low VCEsat (BISS) transistor | Production | |
| PBSS5255PAPS-Q | 55V, 2A PNP/PNP low VCEsat (BISS) double transistor | Production | |
| PBSS5260PAP | 60 V, 2 A PNP/PNP low V (BISS) transistor | Production | |
| PBSS5260PAPS | 60 V, 2 A PNP/PNP low VCEsat (BISS) double transistor | Production | |
| PBSS5350SS | 50 V, 2.7 A PNP/PNP low VCEsat (BISS) transistor | EndOfLife |
Visit our documentation center for all documentation
Marcom graphics (1) |
|||
|---|---|---|---|
| 文件名稱 | 標題 | 類型 | 日期 |

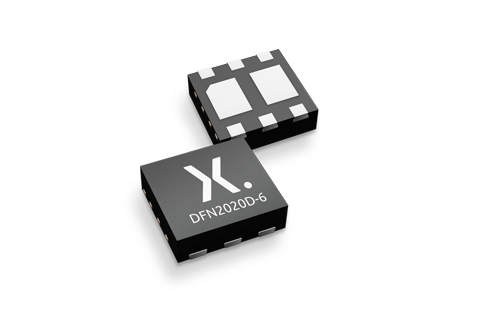

| DFN2020D-6_SOT1118D_mk.png | plastic, thermally enhanced ultra thin and small outline package; 6 terminals; 0.65 mm pitch; 2 mm x 2 mm x 0.65 mm body | Marcom graphics | 2017-01-28 |
Selection guide (1) |
|||
| 文件名稱 | 標題 | 類型 | 日期 |
| Nexperia_Selection_guide_2023.pdf | Nexperia Selection Guide 2023 | Selection guide | 2023-05-10 |
