RET 500 mA 單/雙

RET晶體管可降低處理和開發成本，同時最大程度縮小空間

Nexperia面向標準小信號數字應用提供豐富的單雙RET產品組合。

主要特性和優勢

  • 一個晶體管和兩個電阻集成在一個封裝中
  • 降低處理和庫存成本
  • 廣泛的100 mA產品范圍
  • 減少電路板空間
  • 500 mA產品組合
  • 縮短裝配時間
  • 采用SOT363/457封裝的完整雙RET系列
  • 簡化設計流程
  • 符合AEC-Q101標準
  • 減少焊點，提升系統可靠性

關鍵應用

  • 數字應用
  • 儀表盤
  • 發動機控制單元

參數搜索

RETs 500 mA single/double
數據加載中，請稍候...
參數搜索不可用。

產品

型號 描述 狀態 快速訪問
PDTB1xxxU series 500 mA, 50 V PNP resistor-equipped transistors ACT
PDTB113EU 50 V, 500 mA PNP resistor-equipped transistor Production
PDTB123EU 50 V, 500 mA PNP resistor-equipped transistor Production
PDTB143EU 50 V, 500 mA PNP resistor-equipped transistor Production
PDTB143XU 50 V, 500 mA PNP resistor-equipped transistor Production
PDTD1xxxT series 500 mA, 50 V NPN resistor-equipped transistors ACT
PDTD114ET 50 V, 500 mA NPN resistor-equipped transistor; R1?=?10?kΩ,?R2?=?10?kΩ Production
PDTD143ET-Q 500 mA, 50 V NPN resistor-equipped transistor; R1?=?4.7?kΩ,?R2?=?4.7?kΩ Production
PDTD143XT 50 V, 500 mA NPN resistor-equipped transistor; R1?=?4.7?kΩ,?R2?=?10?kΩ Production
PDTD1xxxU series 500 mA, 50 V NPN resistor-equipped transistors ACT
PDTD113EU 50 V, 500 mA NPN resistor-equipped transistor Production
PDTD113ZU 50 V, 500 mA NPN resistor-equipped transistor Production
PDTD114EU-Q 50 V, 500 mA NPN resistor-equipped transistor Production
PDTD123EU 50 V, 500 mA NPN resistor-equipped transistor Production
PDTD123YU 50 V, 500 mA NPN resistor-equipped transistor Production
PDTD143EU 50 V, 500 mA NPN resistor-equipped transistor; R1 = 4.7 kΩ, R2 = 4.7 kΩ Production
PDTD143XU 50 V, 500 mA NPN resistor-equipped transistor Production
PDTB113EQA 50 V, 500 mA PNP resistor-equipped transistors Production
PDTB113ZQA 50 V, 500 mA PNP resistor-equipped transistors Production
PDTB114EQA 50 V, 500 mA PNP resistor-equipped transistors Production
PDTB114ET 50 V, 500 mA PNP resistor-equipped transistor Production
PDTB114EU-Q 50 V, 500 mA PNP resistor-equipped transistor Production
PDTB123EQA 50 V, 500 mA PNP resistor-equipped transistors Production
PDTB123YQA 50 V, 500 mA PNP resistor-equipped transistors Production
PDTB123YU-Q 50 V, 500 mA PNP resistor-equipped transistor Production
PDTB143EQA 50 V, 500 mA PNP resistor-equipped transistors Production
PDTB143ET-Q 50 V, 500 mA PNP resistor-equipped transistor Production
PDTB143XQA 50 V, 500 mA PNP resistor-equipped transistors Production
PDTB143XT 50 V, 500 mA PNP resistor-equipped transistor Production
PDTD113ET-Q 50 V, 500 mA NPN resistor-equipped transistor; R1?=?1 k?,?R2?=?1?k? Production
PDTD113ZT-Q NPN 500 mA, 50 V resistor-equipped transistor; R1?=?1?kΩ,?R2?=?10?kΩ Production
PDTD123ET NPN 500 mA, 50 V resistor-equipped transistors; R1 = 2.2 kOhm, R2 = 2.2 kOhm Production
PDTD123ET-Q 50 V, 500 mA NPN resistor-equipped transistor; R1 = 2.2 kΩ, R2 = 2.2 kΩ Production
PDTD123TT NPN 500 mA, 50 V resistor-equipped transistors; R1 = 2.2 kOhm, R2 = open Production
PDTD123YK NPN 500 mA, 50 V resistor-equipped transistors; R1 = 2.2 kOhm, R2 = 10 kOhm EndOfLife
PDTD123YT-Q 50 V, 500 mA NPN resistor-equipped transistor; R1?=?2.2?kΩ,?R2?=?10?kΩ Production
PIMC31-Q 500 mA, 50 V NPN/PNP double resistor-equipped transistor; R1 = 1 k?, R2 = 10 k? Production
PIMC31PAS-Q 50 V, 500 mA NPN/PNP Resistor-Equipped double Transistor; R1?= 1?kΩ,?R2?=?10 kΩ Production
PIMC32-Q 50 V, 500 mA NPN/PNP Resistor-Equipped double Transistor (RET); R1?=?2.2?kΩ,?R2?=?10?kΩ Production
PIMC32PAS-Q 50 V, 500 mA NPN/PNP Resistor-Equipped double Transistor; R1?= 2.2?kΩ,?R2?=?10 kΩ Production
PIMN31 500 mA, 50 V NPN/NPN double resistor-equipped transistor; R1 = 1 kOhm, R2 = 10 kOhm Production
PIMN31PAS-Q 50 V, 500 mA NPN/NPN Resistor-Equipped double Transistor; R1?= 1?kΩ,?R2?=?10 kΩ Production
PIMN32-Q 50 V, 500 mA NPN/NPN Resistor-Equipped double Transistor (RET); R1?=?2.2?kΩ,?R2?=?10?kΩ Production
PIMN32PAS-Q 50 V, 500 mA NPN/NPN Resistor-Equipped double Transistor; R1?= 2.2?kΩ,?R2?=?10 kΩ Production
PIMP31-Q 50 V, 500 mA PNP/PNP Resistor-Equipped double Transistor (RET); R1?=?1?kΩ,?R2?=?10?kΩ Production
PIMP31PAS-Q 50 V, 500 mA PNP/PNP Resistor-Equipped double Transistor; R1?= 1?kΩ,?R2?=?10 kΩ Production
PIMP32-Q 50 V, 500 mA PNP/PNP Resistor-Equipped double Transistor (RET); R1?=?2.2?kΩ,?R2?=?10?kΩ Production
PIMP32PAS-Q 50 V, 500 mA PNP/PNP Resistor-Equipped double Transistor; R1?= 2.2?kΩ,?R2?=?10 kΩ Production
Visit our documentation center for all documentation

Marcom graphics (1)
文件名稱 標題 類型 日期

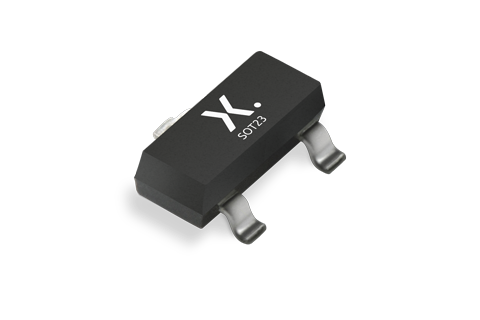

SOT23_mk.png plastic, surface-mounted package; 3 terminals; 1.9 mm pitch; 2.9 mm x 1.3 mm x 1 mm body Marcom graphics 2017-01-28

Selection guide (1)
文件名稱 標題 類型 日期
Nexperia_Selection_guide_2023.pdf Nexperia Selection Guide 2023 Selection guide 2023-05-10
